20-1000 Gallon | Tank Mounted | Sanitary

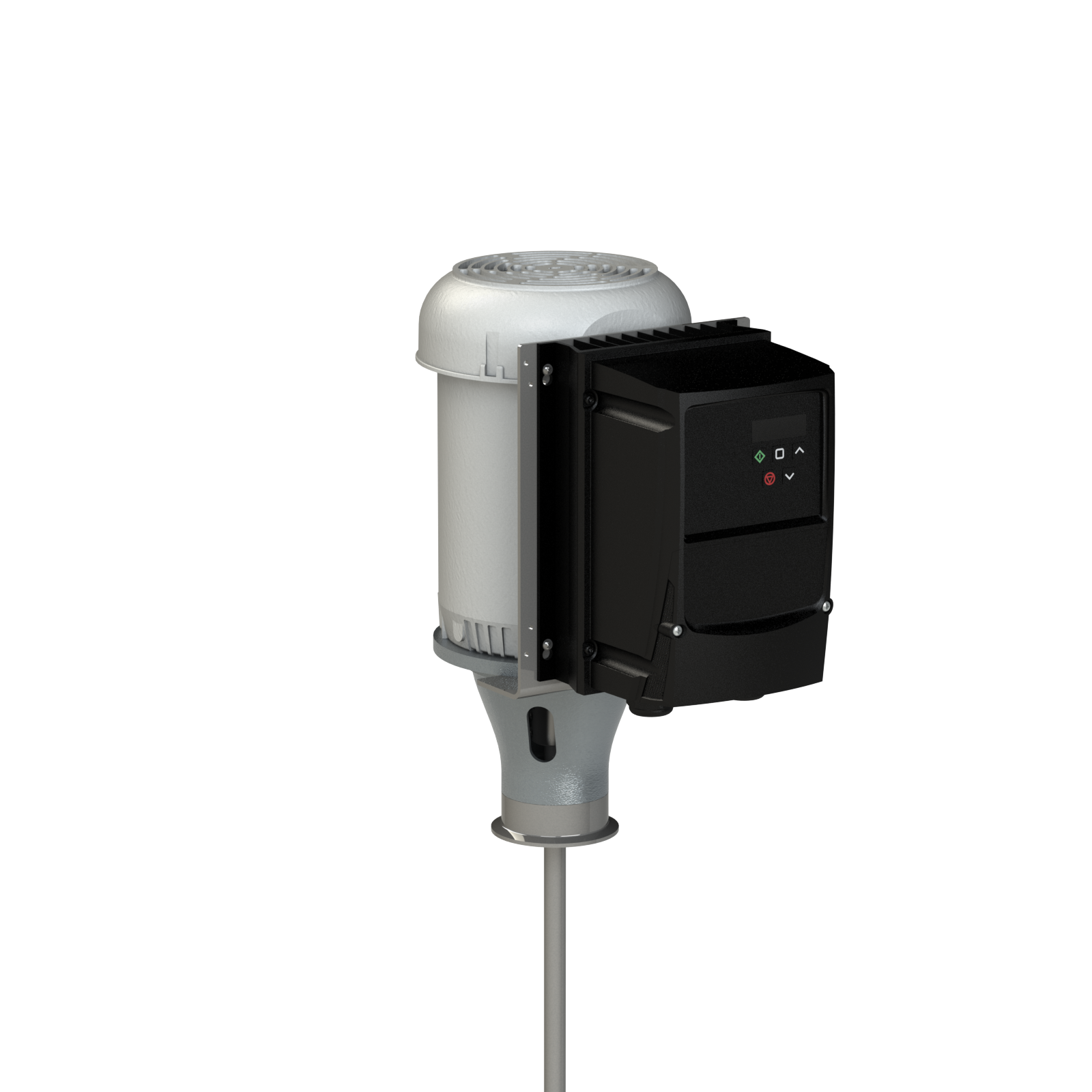

White Washdown Direct Drive Tri-Clamp Mount Mixer

Regular price $3,994.00
/
Lead Time: 20 Business Days
Favored for their sanitary applications, these tri-clamp mounted mixers utilize a shaft seal to prevent contamination of your liquid ingredients while processing. Keep your process sanitary with an easy to clean white washdown motor.
Part Number: TCM050VDD-W-24

Our White Washdown tri-clamp mixer line is built for sanitary applications requiring a wash down design. This line is constructed for food, various beverage and pharmaceutical applications, or any application requiring high standards of cleanliness. This white wash down construction protects against most types of chemical, moisture, or humidity related corrosion, and other wash down processes taking place in the vicinity where overspray might occur. They are designed to easily attach to a 3 inch tri-clamp fitting and include an FDA lip shaft seal to prevent damage to the mixer and the liquid ingredients.The Totally Enclosed Fan Cooled (TEFC) electric motor is IP65 rated for protecting against water spray and completely sealed against dust ingress. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Select your horsepower and shaft length and an appropriately sized propeller or hydrofoil impeller will be matched to your mixer.

  • Item Number TCM050VDD-W-24
  • Enclosure type IP65 White Washdown
  • Horsepower 1/2 HP
  • Impeller attachment Set screw
  • Impeller diameter 4.5 in.
  • Impeller material 316SS
  • Impeller type Propeller
  • Lead time 20 Business Days
  • Motor type TEFC Electric
  • Mount Tri-Clamp
  • Mount dimension 3 in.
  • Number of impellers 1
  • Phase 1 Ph.
  • Rpm 0-1750
  • Seal FDA Lip Seal
  • Shaft diameter .625 in.
  • Shaft length 24 in.
  • Shaft material 316SS
  • Speed controller Variable Frequency Drive (VFD)
  • Voltage 115V
